Pedders Extra Heavy Duty Load Carrying and Towing Suspension Kit for Toyota Hilux – Engineered for a Constant 600 kg Rear Load
This suspension kit is engineered specifically for vehicles carrying a constant 600 kg load over the rear axle. It delivers improved towing performance, enhanced load stability, and increased ground clearance under consistent rear weight.
Do you regularly use your Hilux for heavy towing or transporting equipment? Pedders Suspension offers the perfect solution. This kit includes our trusted Pedders TrakRyder Foam Cell shocks, durable front coil springs, and rear leaf springs, plus all necessary bushes and U bolts for easy installation.
This heavy duty lift kit is tailored not just to lift your vehicle but to improve its load-carrying and towing capabilities. It’s the ideal upgrade if your Hilux is permanently fitted with heavy equipment such as service bodies, storage drawers, long-range fuel tanks or canopies.
As with all heavy-duty kits designed for high rear loads, a noticeably firmer ride may occur when driving unladen. If your driving is primarily without significant rear weight, consider our Improved Ride Kit (803238) for greater comfort.
Key Improvements
Rear Load Support: Rear leaf springs designed to maintain correct ride height under a continuous 600 kg load.
Lifted Stance: Approximately 40 mm lift improves off-road clearance and vehicle appearance.
Hassle-Free Fitment: Fully assembled Ezifit struts with Pedders Foam Cell shocks, dedicated coils, bump stops, and boots for fast installation without a spring compressor.
All parts are direct replacements for factory components and require no vehicle modifications. For best results, a wheel alignment is recommended after installation.
Not sure if this is the right kit for your needs? Contact our team at Pedders—we're here to help with expert advice.
Key Features
1.75 Inch Lift Kit
Optimised for constant 600 kg rear load carrying and towing
Increased Ground Clearance
Heavy-Duty Foam Cell Shocks with 40 mm Bore
High-Quality Steel Coil Springs
2 Year / 25,000 Mile Warranty
Vehicle Height Information
Front: 805 mm with 18-inch wheels

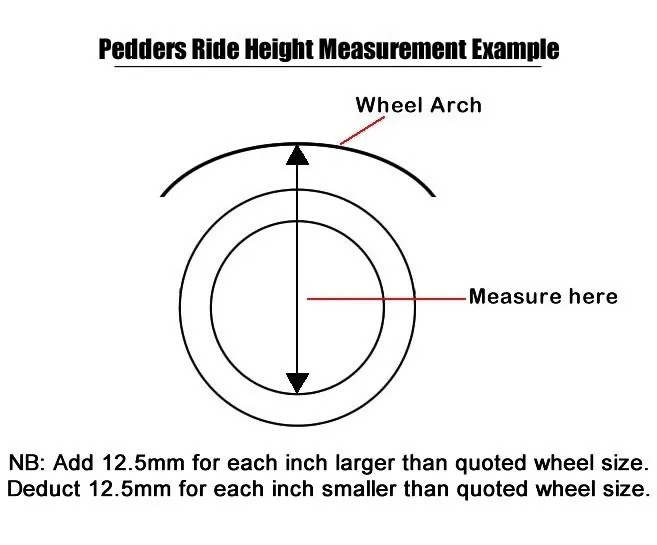

Rear: Approximately 40 mm above factory height (measured as shown in the secondary image)
Note: Measurements are based on a standard vehicle configuration. Front accessories like winches or bull bars may alter final ride height. Contact us if alternative spring rates are required for your setup.
Please note: This kit is specifically designed for vehicles carrying a constant 600 kg load over the rear axle. Using it without sufficient rear weight may result in a significantly firmer ride and incorrect ride height.

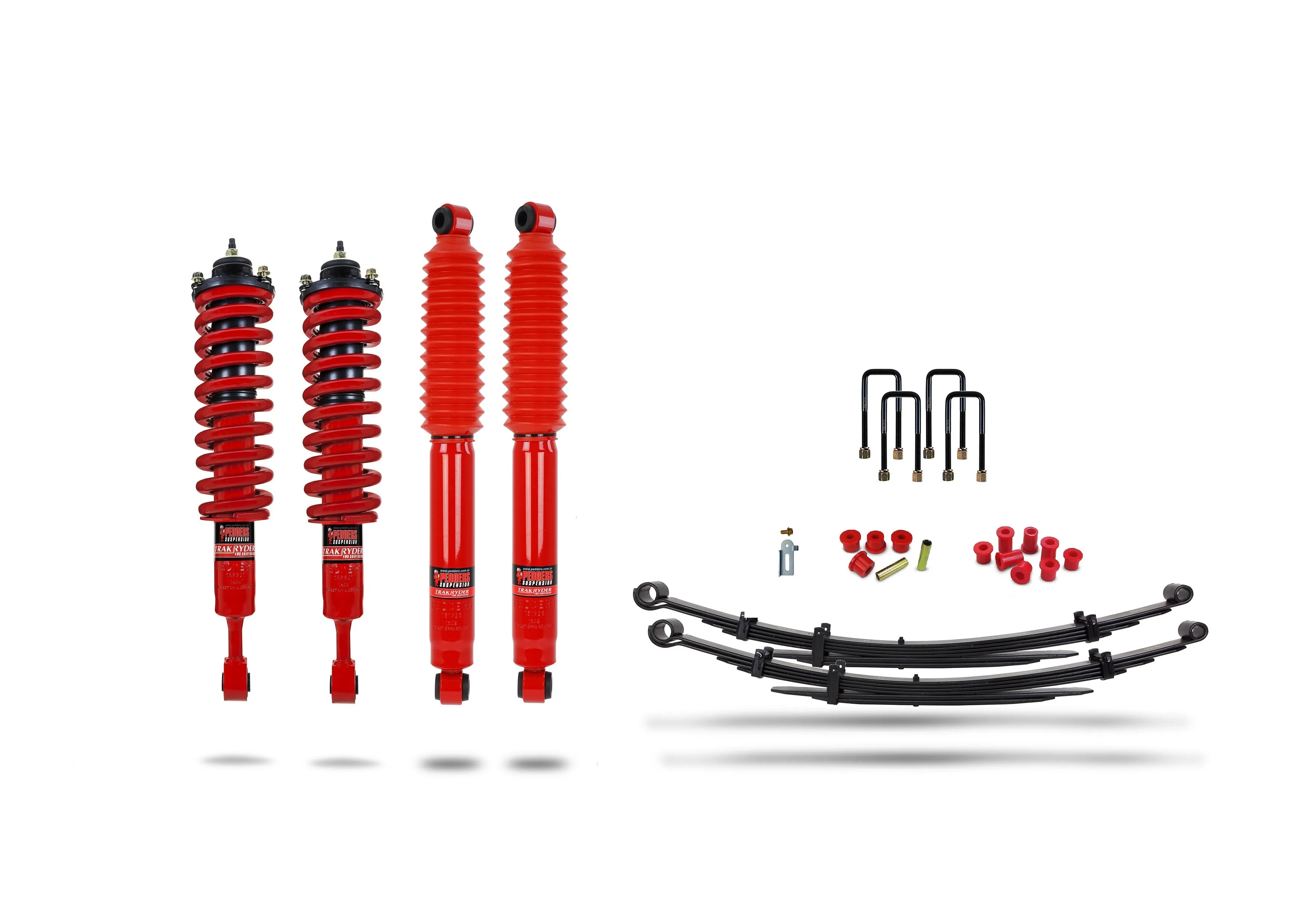

Contents of Kit 803241
1x 5056 - 2016 HiLux SR5 Auto-Adjust Headlight Bracket
2x 151241 - Pedders Trakryder Foam Cell Shock
2x 266012 - Pedders Trakryder Leaf Spring
4x 434005 - SQ U Bolt 62 x14 x 225
2x 807205 - Pedders EziFit Foam Strut (280071)
1x EP8338 - Urethane Leaf Spring Eye Bush (2PKT)
1x EP8339 - Urethane Leaf Spring Eye/ Shackle Bush (8PKT)
