Pedders 1.75 Inch Suspension Lift Kit for Toyota Hilux
Improved looks and ground clearance.
Are you looking to raise your Toyota Hilux? Then Pedders Suspension have the solution for you. This kit features our excellent Pedders TrakRyder shocks, front coil springs, new rear leaf springs as well as the necessary bushes and U bolts to install them.
This kit is our Entry level Lift kit, and is designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then consider one of our heavy duty kit options.
This kit will raise the vehicle by approx. 40mm (see actual dimensions below) allowing better ground clearance and improved looks. Can be used to accommodate larger tyres. The dimensions quoted assume a standard vehicle. If you have additional equipment on board at the front such as a winch or bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
For those using the vehicle in a continuously laden state, please consider one of our heavy duty options.
These components replace the original items. No other modifications to the vehicle are necessary. After fitting we strongly recommend a wheel alignment is carried out for optimum performance of your vehicle.
Still not sure this is the correct kit for you? Have further questions? Then please do get in touch with one of our team here at Pedders who will be able to assist you.
Key Features
1.75 Inch Lift Kit
Increased Off-Road Ground Clearance
Sintered Iron Piston Shocks with Large 35mm Bore
Premium Grade Steel Coils
All backed by our 2 year / 40,000km warranty
Vehicle Height Information
Front: 805mm with 18 inch wheels
Rear: Approx. 40mm higher than standard.

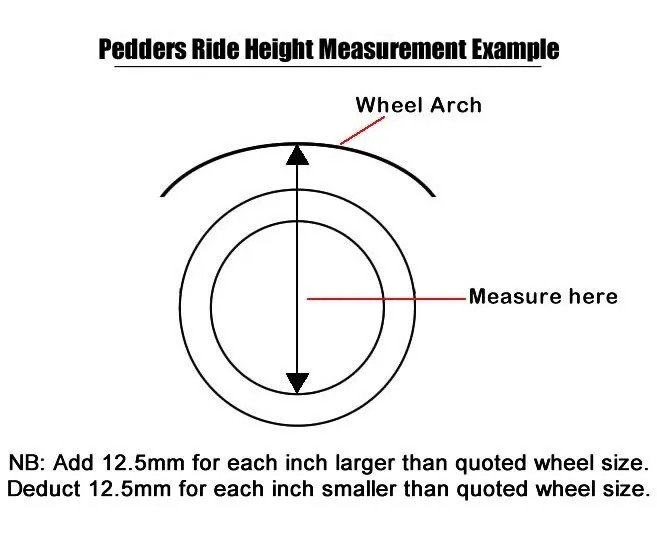

Notes: Heights should be measured as shown in the secondary picture.

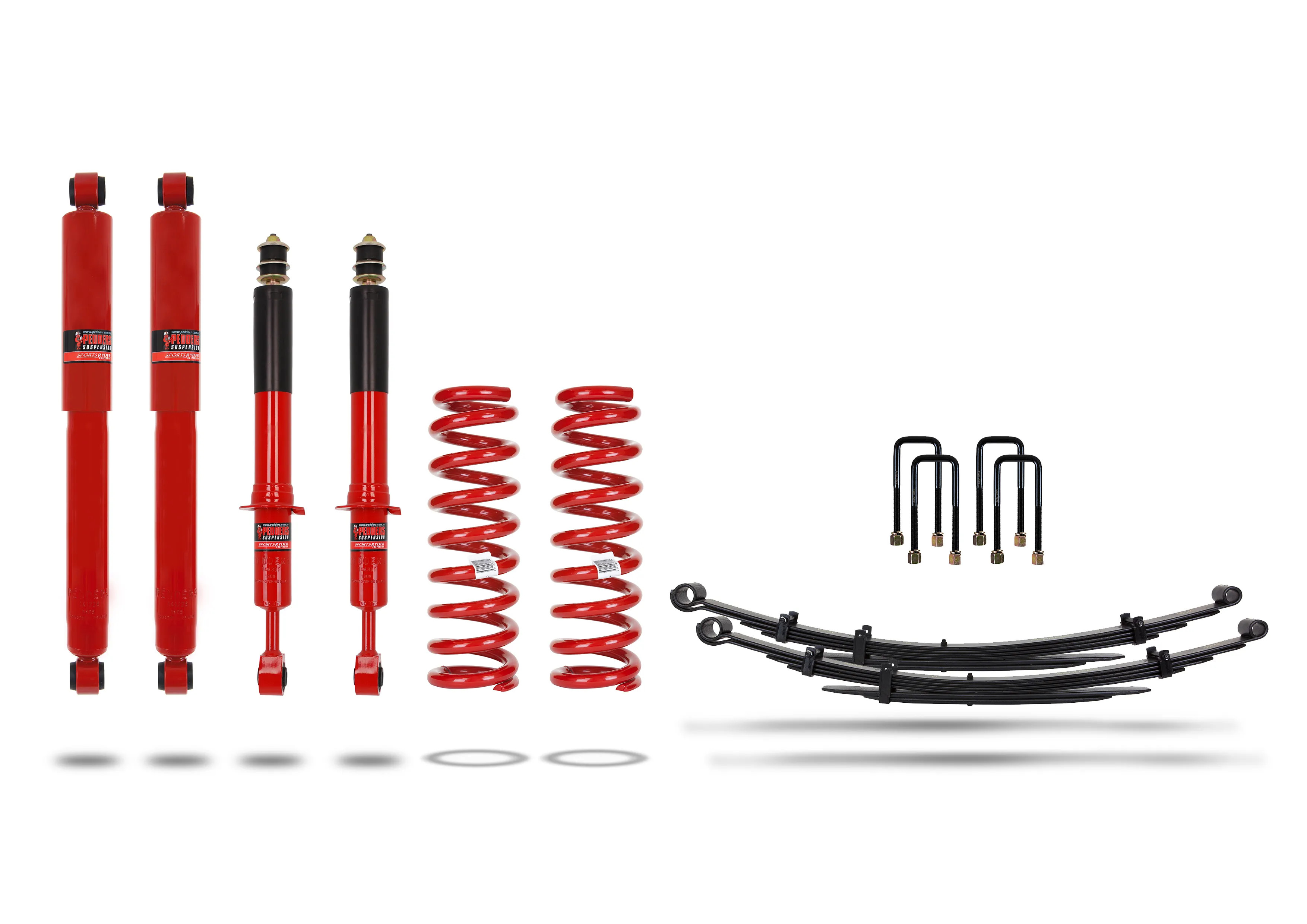

Contents of Kit 803228
1x 5056 - 2016 HiLux SR5 Auto-Adjust Headlight Bracket
2x 7828 - Pedders Trakryder Coil Spring
2x 9145 - Pedders Trakryder Gas 4x4 Shock
2x 144301 - Pedders Gas Sports Ryder Spring Seat
2x 263012 - Pedders Trakryder Leaf Spring
4x 434008 - Pedders U-Bolt 60 x 13 x 190mm
1x EP8338 - Urethane Leaf Spring Eye Bush (2PKT)
1x EP8339 - Urethane Leaf Spring Eye/ Shackle Bush (8PKT)
