Pedders 1.75 Inch Suspension Lift Kit. Toyota Hilux

This suspension lift kit is designed for Toyota Hilux owners seeking improved ground clearance and vehicle stance. It provides approximately 40mm lift, enhancing off-road ability and accommodating larger tyres.

Key Features

• 1.75 Inch Lift Kit
• Increased Off-Road Ground Clearance
• Sintered Iron Piston Shocks with Large 35mm Bore
• Premium Grade Steel Coils
• Includes front coil springs and new rear leaf springs
• Complete with necessary bushes and U bolts for installation
• Backed by 2 year / 40,000km warranty

Product Overview

The Pedders 1.75 Inch Lift Kit raises the Toyota Hilux by approximately 40mm, improving ground clearance and overall appearance. This entry-level kit includes premium components such as TrakRyder shocks and heavy-duty steel springs, replacing original suspension parts without requiring additional modifications. It supports daily driving and moderate off-road use, with the potential to fit larger tyres.

Height measurements apply to a standard vehicle; additional front-mounted accessories like winches or bull bars may affect final height. For constant heavy loading or towing, heavier duty kits from Pedders are recommended.

Technology & Materials

This kit features sintered iron piston shocks with a large 35mm bore, providing consistent damping performance. Premium grade steel coils and matched rear leaf springs ensure durability and enhanced suspension function under varied driving conditions.

Installation & Compatibility

The components fully replace original suspension items and come with all necessary hardware including bushes and U bolts, allowing a bolt-in installation. No cutting or welding is required. A professional wheel alignment is strongly recommended after fitting to optimise vehicle performance.

This kit is entry-level and ideal for users seeking improved ride height and clearance rather than heavy-duty towing or constant heavy load applications.

Technical Specification

• Lift height: approx. 40mm

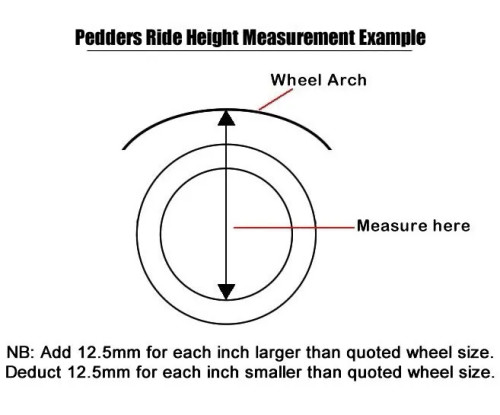

• Front vehicle height: 765mm with 16 inch wheels
• Rear lift: approx. 40mm higher than standard
• Shock bore size: 35mm sintered iron piston
• Includes front coil springs, rear leaf springs, bushes and U bolts

Note: Vehicle ride height may vary if front-mounted accessories such as bull bars or winches are fitted. Alternative springs may be required in such cases.

Why Choose This Kit

• Matched Pedders components designed as a system to raise and improve Hilux suspension
• Proven TrakRyder shocks for consistent performance
• Comprehensive hardware included for straightforward installation
• Supported by a 2 year / 40,000km warranty for peace of mind

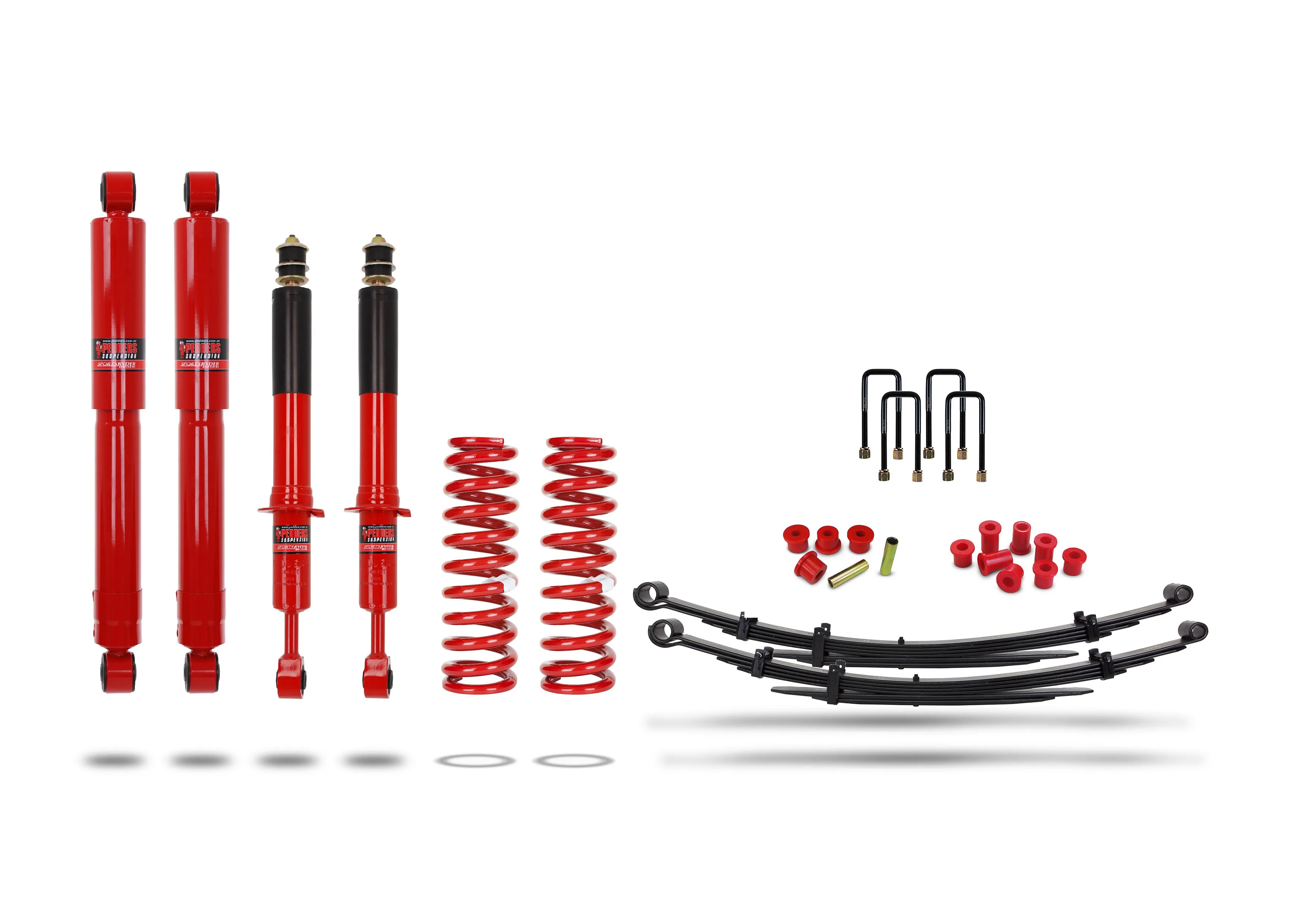

Contents of Kit 803159

• 4x 4382 - SQ U-bolt 62 x 14 x 185mm
• 2x 6280 - Pedders Trakryder Leaf Spring
• 2x 7828 - Pedders Trakryder Coil Spring
• 2x 141226 - Pedders Gas Sports Ryder Shock
• 2x 144301 - Pedders Gas Sports Ryder Spring Seat
• 1x EP8338 - Urethane Leaf Spring Eye Bush (2PKT)
• 1x EP8339 - Urethane Leaf Spring Eye/ Shackle Bush (8PKT)
