Adjustable Rear Upper Lower Trailing Arm Lift 2" For Land Cruiser 80 Series 105

Adjustable Rear Upper Lower Trailing Arm Lift 2" For Land Cruiser 80 Series 105

Product Overview :

The rear lower control arms are part of the rear four link rear suspension. When the rear suspension is lifted, the axle will rotate backwards thus forcing the differential pinion to point upwards. The result is that the pinion angle of the rear differential and the flange on the transfer case isn't parallel. This most likely will introduce vibration(s) into the drive shaft. Installing adjustable upper rear control arms adjustable, one can now rotate the pinion angle down and correct the angles, thus eliminating or minimizing vibration(s).

These lower control arm is designed to replace the factory fixed arm to allow for pinion angle changes after lifting the suspension. Also can be used to position the rear wheels forward or backwards when used with different length / adjustable lower arms. Designed in a heavy duty 36mm thick body tubing and tig welded for strength these arms offer over 150 mm of adjustment and made in an on car adjustable design. Supplied with new rubber bushes and coated black to blend with the chassis.

These arms are a complete replacement with new polyurethane bushings. The joint allows adjustment of the arms on the truck. Now with black powder coating for maximum corrosion resistance.

Features :

- Correct driveline and pinion angles

- Easy on-vehicle adjustment

- 2" - 4" adjustment

- Solid 36 mm thick body

- Over-engineered construction

- 60% increase in eye wall thickness.

- Deeper penetrating welds

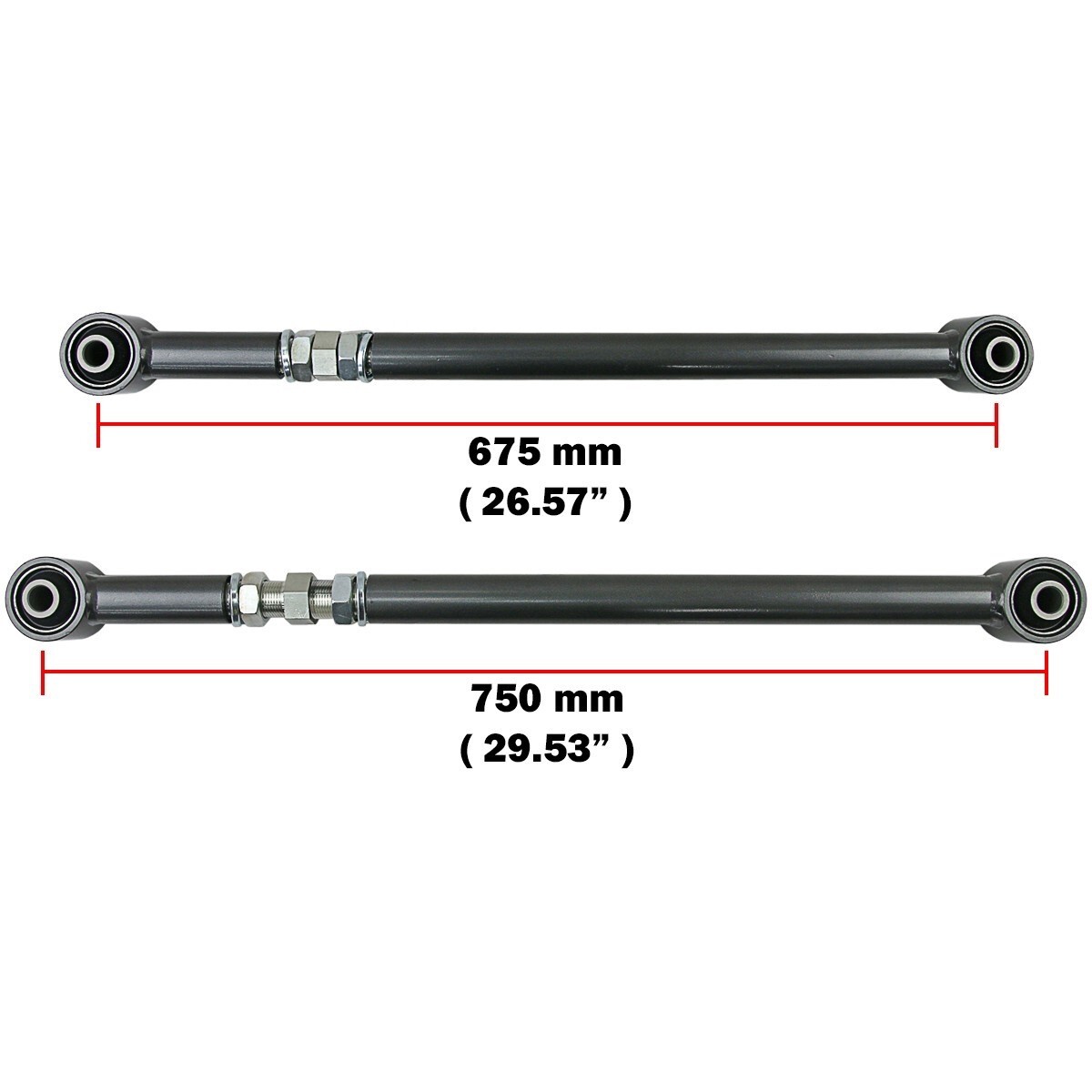

- Min. Length :

~ 675 mm ( 26.57" ) [ Lower Arm ]

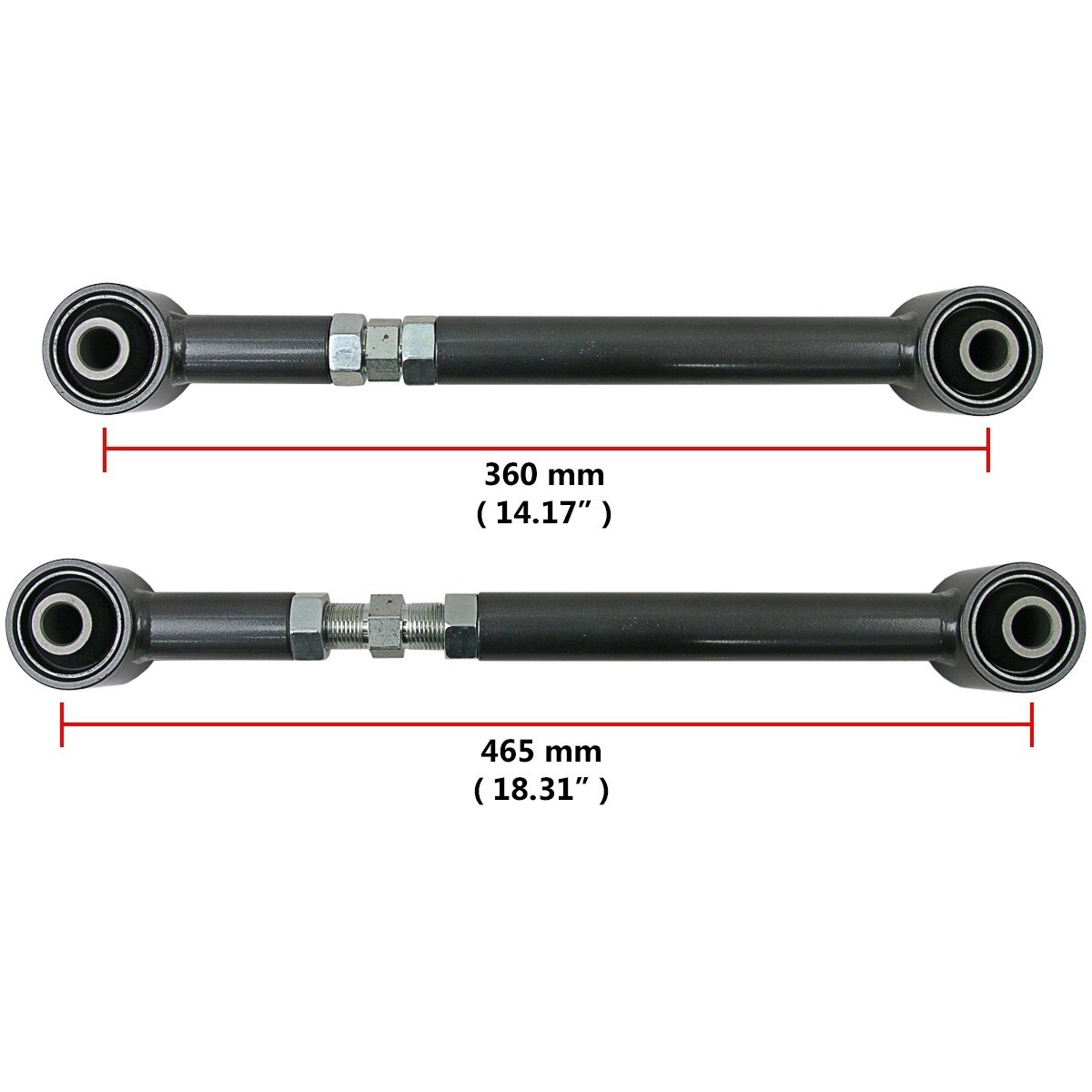

~ 360mm ( 14.17" ) [ Upper Arm ]

- Max. Length :

~ 750 mm ( 29.53" ) [ Lower Arm ]

~ 465 mm ( 18.31" ) [ Upper Arm ]

Notes :

- Not Including Installation Guide or Manual

- Professional Installation is Recommended

Applications ( Fits For Below Vehicles ) :

Fit For Toyota Land Cruiser 80 Series FJ80 FZJ80 HDJ80 HDJ81 HZJ80 HZJ81 (Lift Up 2" - 4" Model)

*** Please make sure it fit your car before purchase ***

*** Most of the images provided are for illustration purposes only and may not be the actual products.

Package Content :

- 1 Pair ( Left + Right ) Adjustable Rear Lower Trailing Arm

- 1 Pair ( Left + Right ) Adjustable Rear Upper Trailing Arm

Delivery & Dispatch

Fast Dispatch – Orders are shipped same or next working day.
FREE UK Mainland Delivery – For Highlands, Islands & Northern Ireland, message us for a quote.
Need it urgently? Contact us for next-day delivery options.

Upgrade your 80 series with HD   – order now!

PLEASE USE A QUALIFIED MECHANIC TO FIT THIS ITEM IF YOU ARE NOT CONFIDENT IN YOUR OWN ABILITY.
