40A 12v DC DC Charger with MPPT Solar Battery to Battery Smart Charge Relay APXDC40A
- Intelligent 40A DC-DC Charger with MPPT Solar Management

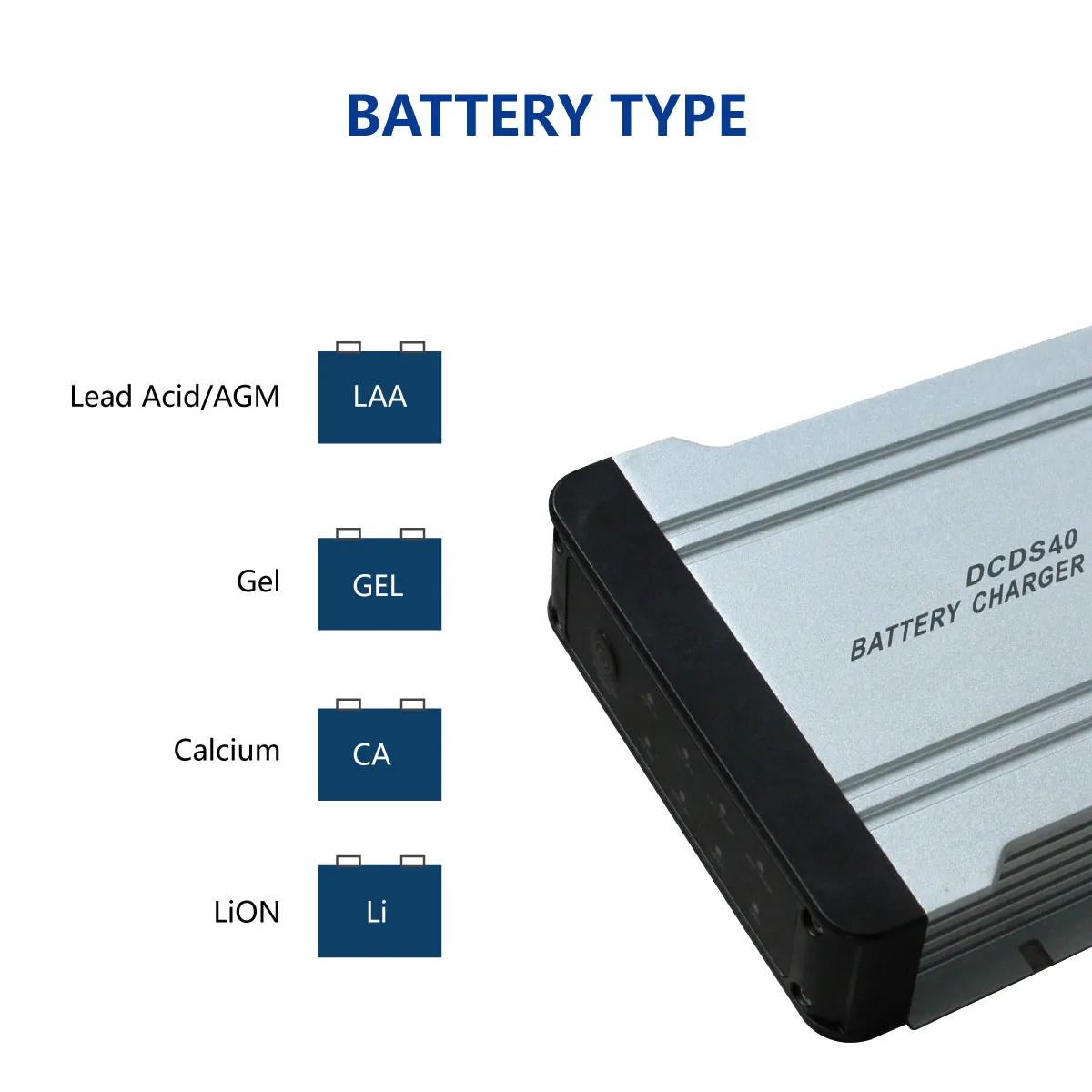

- Suitable for all Standard Lead Acid, Gel, AGM, Calcium and LiFePo4 Batteries.
- Suitable for battery setups between 50AH to 1200AH

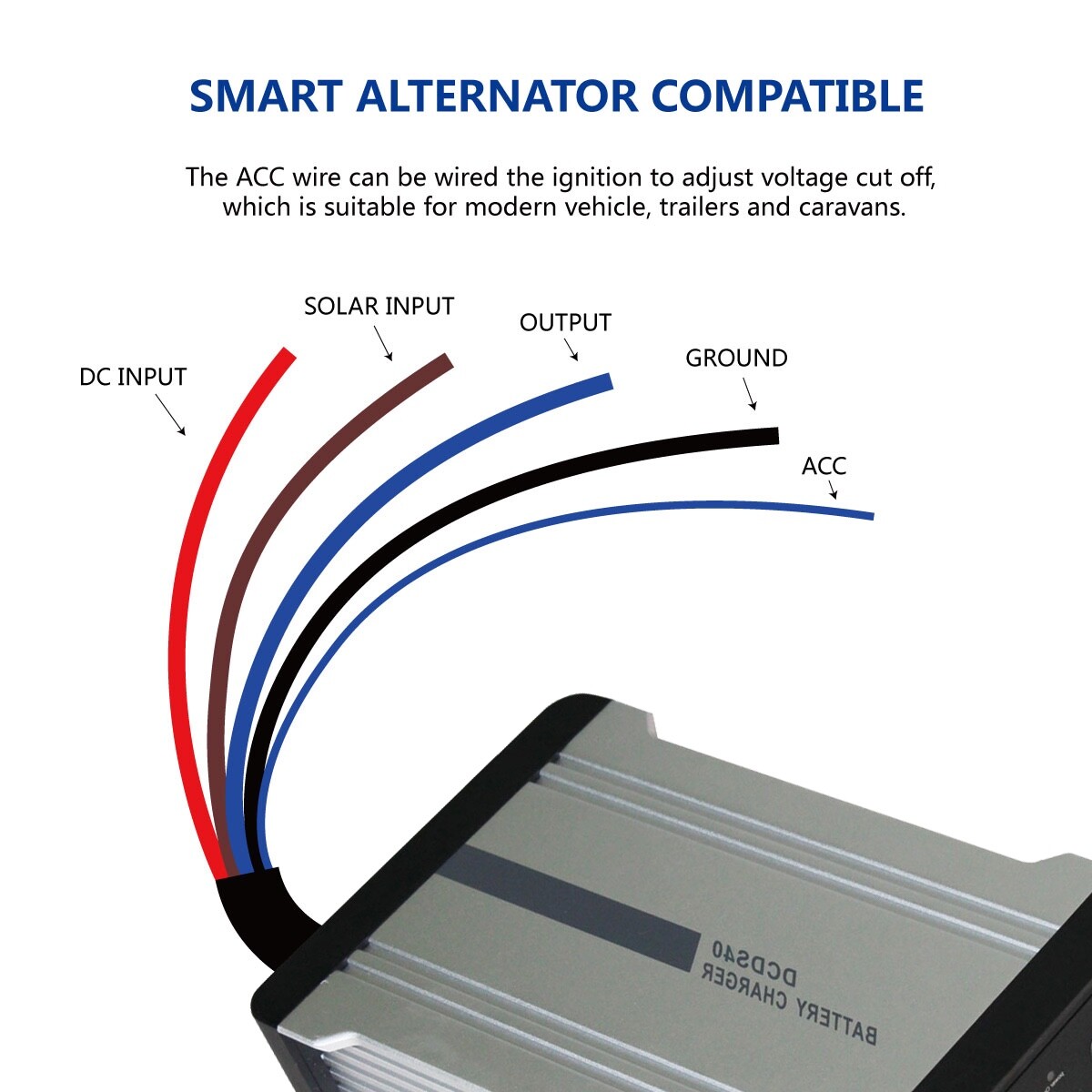

- Our 3 stage smart charging DC-DC Chargers take power from the factory alternator and charge up leisure batteries in your RV, Caravan, Motorhome, Boat, 4×4 and more. A DC-DC Charger is a must have for all modern vehicles that use a smart alternator as they require sensitive electronics to efficiently and safely charge batteries. Our DC-DC Charger is super simple to use and setup display. Plug in the cables and select the battery type and you’re ready to go.
- Our DC-DC Charger is capable of outputting up to 40A in to your leisure battery. Meaning a standard 80Ah battery can be charged from empty to 100% in around 2 hours! The built-in BMS protection for lithium batteries means that it won’t charge unless the correct conditions are met like temperature and voltage.

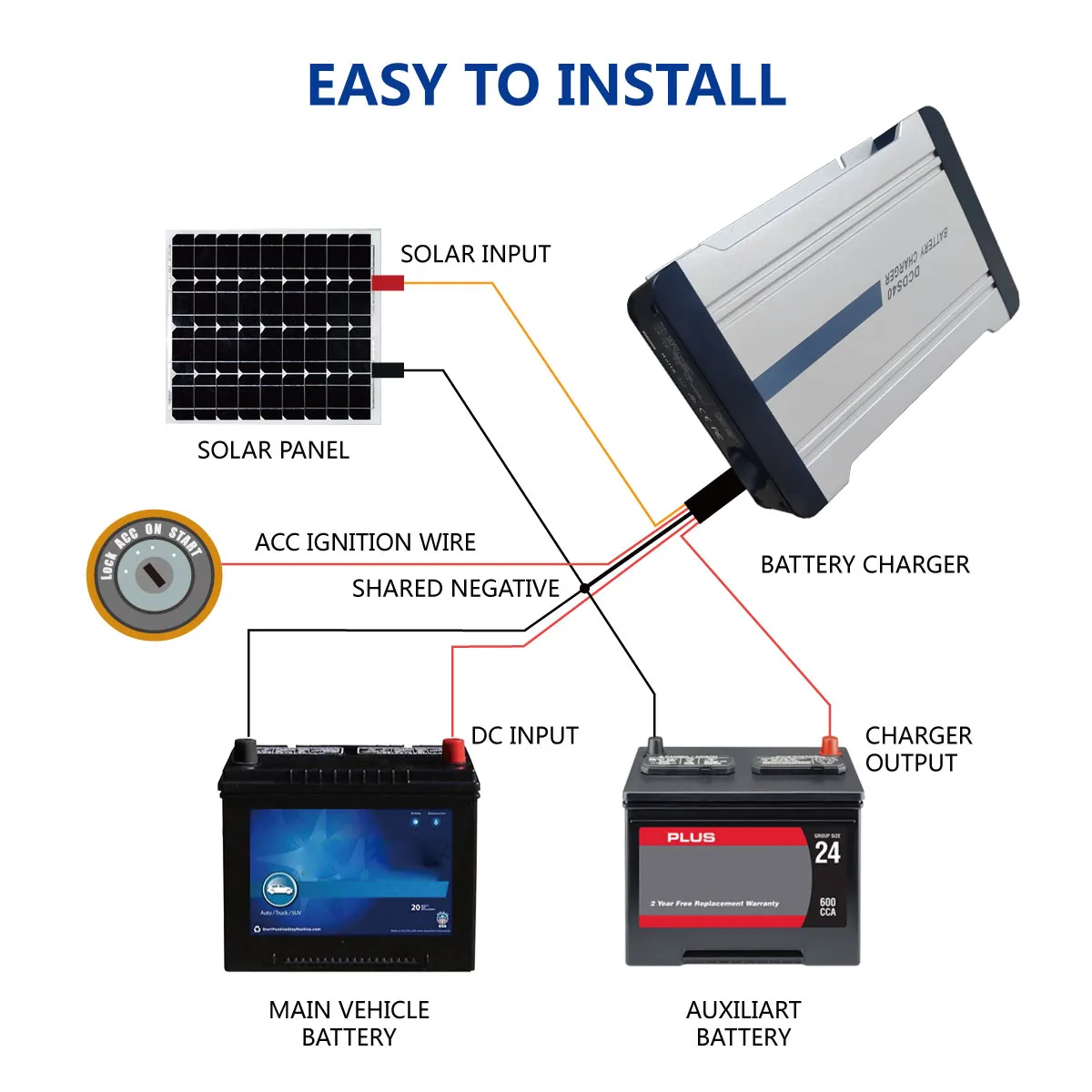

The built-in solar MPPT systems allows for solar panel connection, meaning your batteries stay charged while parked up or at camp. Never wake up to a flat battery again with our smart 40A DC-DC Battery charger.
Features:
- Input/output reverse polarity protection
- Input/ output over-voltage protection
- Over temperature protection
- Over-charge protection
- BMS protection for Lithium Battery
- 3 stage charging to maximise the lifespan of your batteries

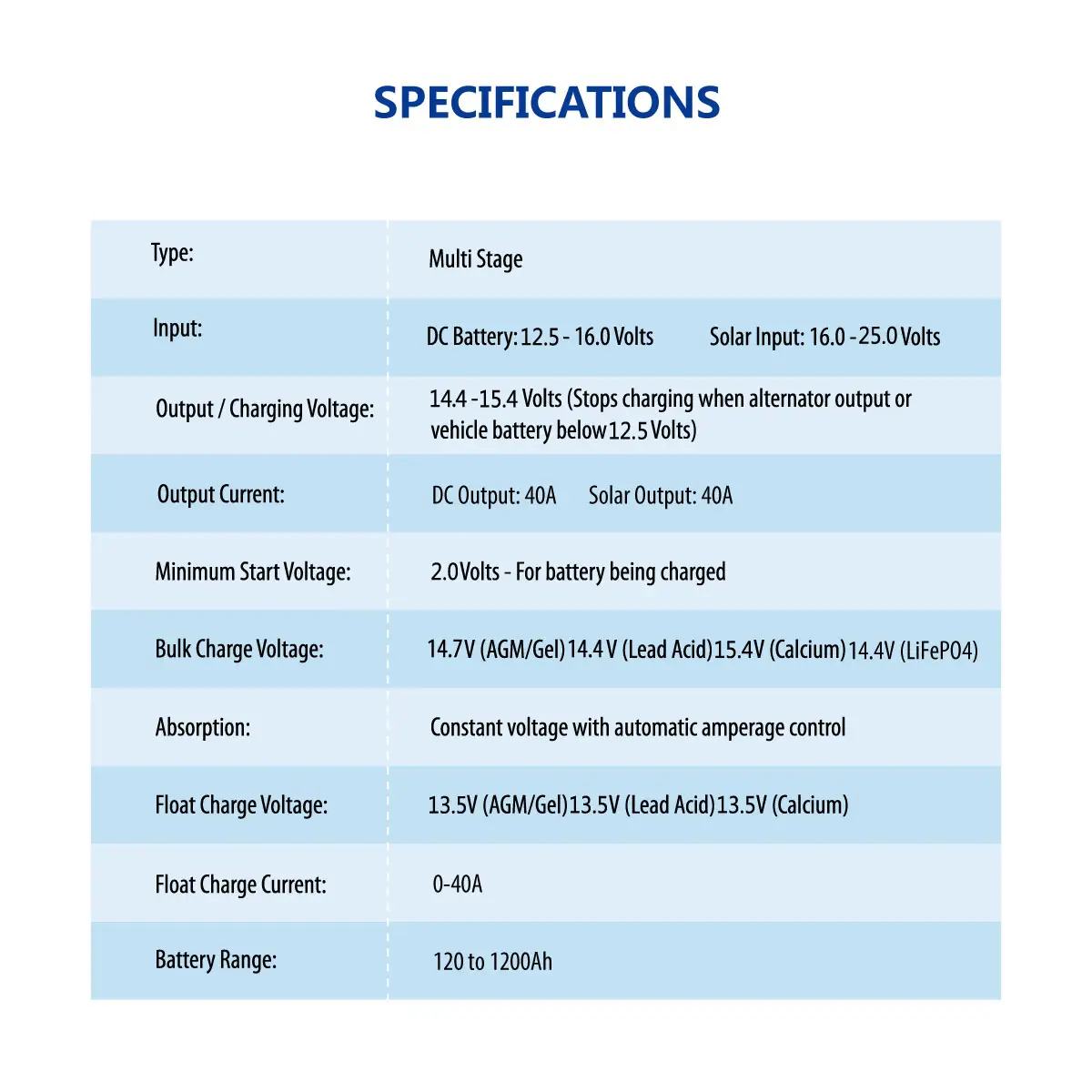

Specs:
Max Charging Current: 40A
Solar Input Voltage: 9-32 Volts
Solar Input Capacity: 600 Watts
Vehicle Input Voltage (From Vehicle Alternator/ Battery): 12.5-15.4 Volts (Should be between 14.4-15.4V)
Recommended Fuse Size: 40 Amps
Standby Consumption: Less than 10 mA
Operating Temperature: -20 to +50 oC
Charge Type: 3 Stage
FREE DELIVERY INCLUDED - Or collect from Apex4WD Ltd, SG5 4NZ
- Brand:
- APEX4WD
- Unit Type:
- Unit
- Model:
- Relay
- Unit Quantity:
- 1
- ConditionID:
- 1000
- ConditionDisplayName:
- New
