2KW Diesel Heater Air Night Fuel 15L 4x4 Car Truck Boat Motorhome LCD Display
Heater Power: 2KW
Fuel Gasoline: Diesel
Car Air Conditioning Type: Heating
Rated Voltage: 12V
Fuel Consumption(L/h): 0.11-0.54
Working Temperature of the Heater: -40℃~+50℃
Working Temperature of the Oil pump: -40℃~+40℃
Material: Metal & Plastic
Oil Tank Volume: 15L
Fuel Gasoline: Diesel
Car Air Conditioning Type: Heating
Rated Voltage: 12V
Fuel Consumption(L/h): 0.11-0.54
Working Temperature of the Heater: -40℃~+50℃
Working Temperature of the Oil pump: -40℃~+40℃
Material: Metal & Plastic
Oil Tank Volume: 15L

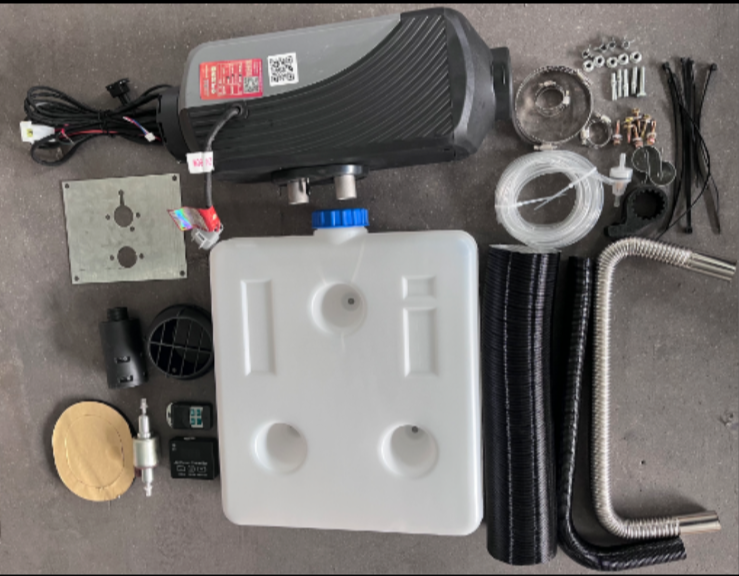

What's Included:
1X Diesel Heater
1X Air intake Cover
1X Mounting Plate
1X Shock Pad
1X 15L Plastic Tank
1X Air Intake pipe
1X Exhaust pipe
1X Fuel Pump
1X Fuel Pump Shock Clip
1X Fuel Pickup for exsiting tank
1X Diesel Filter
1X Fuel Line
1X Wiring Harness
1X Digital Thermostat/Controller
2X Duct
2X Vent
1X Installation Kit
1X Exhaust silencer
1X Air Fliter
1X Remote Control
1X T Piece
Attention:
1. Try to rotate the impeller to ensure that it can rotate freely and smoothly. If it cannot rotate freely, you need to use a tool to adjust the gap of the impeller.
2. The heater should be directly connected to the power supply to ensure that the battery is above 80A, the power supply current is above 20A, and the voltage is 11.5~12.8V.
3. The intake pipe and exhaust pipe should not be bent too much to keep the ventilation smooth, and ensure that at least 10cm or 0.79in in front of the air inlet
4. When the heater is turned on for the first time, it needs to match with remote control and lead the oil to the main engine.
5. Please gently tear off the protective film on the top of the LCD screen before use.
6. The distance between the fuel pump and the machine should be 1.5~2m.(For split machine)
7. Please provide the machine with good quality diesel/ fuel.
8. Exhaust pipes must be installed outdoors or outside your vehicle.
9. When assembling the machine, don't reverse the direction of the oil pump.
10. When installing the heater, it must be placed horizontally with the outlet facing down.
11. When the machine first started, because there is no diesel oil in the tube, if the machine could not sense the oil in two minutes, it will stop automatically. After the machine stops running, restart it to get diesel flowing.
12. When you turn off the heater, it will continue to run until there is no fuel in it. Do not forcibly disconnect the power supply, or it will damage the machine.
13. Turn the fan on about 1.5min, and the oil pump starts to work.
1X Air intake Cover
1X Mounting Plate
1X Shock Pad
1X 15L Plastic Tank
1X Air Intake pipe
1X Exhaust pipe
1X Fuel Pump
1X Fuel Pump Shock Clip
1X Fuel Pickup for exsiting tank
1X Diesel Filter
1X Fuel Line
1X Wiring Harness
1X Digital Thermostat/Controller
2X Duct
2X Vent
1X Installation Kit
1X Exhaust silencer
1X Air Fliter
1X Remote Control
1X T Piece
Attention:
1. Try to rotate the impeller to ensure that it can rotate freely and smoothly. If it cannot rotate freely, you need to use a tool to adjust the gap of the impeller.
2. The heater should be directly connected to the power supply to ensure that the battery is above 80A, the power supply current is above 20A, and the voltage is 11.5~12.8V.
3. The intake pipe and exhaust pipe should not be bent too much to keep the ventilation smooth, and ensure that at least 10cm or 0.79in in front of the air inlet
4. When the heater is turned on for the first time, it needs to match with remote control and lead the oil to the main engine.
5. Please gently tear off the protective film on the top of the LCD screen before use.
6. The distance between the fuel pump and the machine should be 1.5~2m.(For split machine)
7. Please provide the machine with good quality diesel/ fuel.
8. Exhaust pipes must be installed outdoors or outside your vehicle.
9. When assembling the machine, don't reverse the direction of the oil pump.
10. When installing the heater, it must be placed horizontally with the outlet facing down.
11. When the machine first started, because there is no diesel oil in the tube, if the machine could not sense the oil in two minutes, it will stop automatically. After the machine stops running, restart it to get diesel flowing.
12. When you turn off the heater, it will continue to run until there is no fuel in it. Do not forcibly disconnect the power supply, or it will damage the machine.
13. Turn the fan on about 1.5min, and the oil pump starts to work.
Delivery & Collection:
✅ FREE DELIVERY - UK Mainland ONLY - Message for delivery outside this area.
⚡ Next-Day Dispatch Available – Contact us for details
Collection Available – Pick up from Apex4WD Ltd, SG5 4NZ
