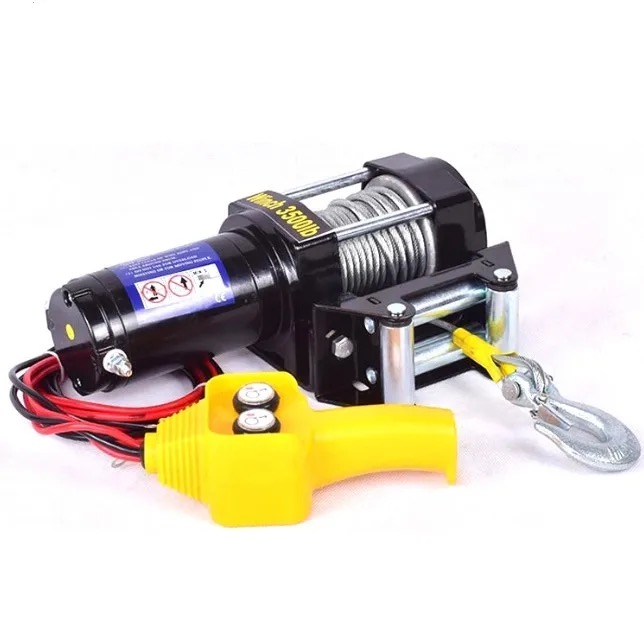

3500lb Electric Recovery Winch 12V DC Steel Cable

This electric winch is especially designed for vehicle recovery - great for mounting on trailers, ATVs, Quad bikes and more. The free spool clutch included is operated by a pull and turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. A tension plate reduces backlash and snaring when pulling out the wire rope. It also features a mounting plate, a roller fairlead and a wireless remote control.

Equipped with a permanent motor, this device is suitable for intermittent duty application.

Delivery includes: 1 x 3500lb winch, 1 x wire remote control, 1 x hook with cable, power cable and accessories.

Specifications:

Max. line pull: 1360 KG

Max. current: 145 Amp

Motor: 1.2 HP, DC 12 V permanent magnet

Gear ratio: 153:1

Gearing: Differential planetary

Wire rope length: 9 m

Weight: 6.5 KG

Dimensions: 285 x 105 x 105 mm (L x W x H)

Drum diameter: 31.75 mm

IP67 Rated
